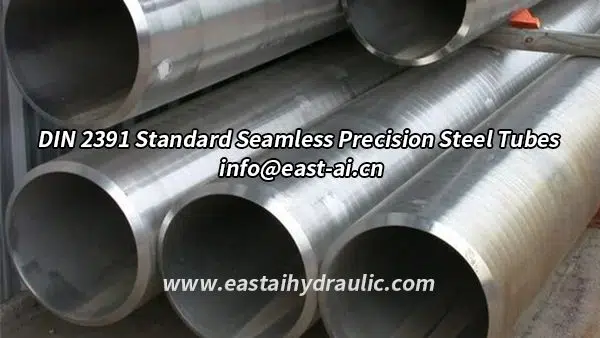

When it comes to high-quality steel tubes, the DIN 2391 standard stands out as a hallmark of precision and reliability. These seamless precision steel tubes play a vital role in various industries, from automotive to hydraulic systems. In this article, we’ll delve into the nuances of the DIN 2391 standard, exploring its specifications, applications, and advantages.
What is DIN 2391?
The DIN 2391 standard specifies the requirements for seamless precision steel tubes. Originating from Germany, this standard has become a global benchmark for manufacturing high-precision steel tubes. It’s known for its stringent quality controls and comprehensive specifications that ensure consistent product performance.
Types of Steel Tubes under DIN 2391
Under the DIN 2391 standard, the primary focus is on seamless precision steel tubes. These tubes are manufactured through cold drawing or cold rolling processes, which impart high dimensional accuracy and superior surface quality.
Material Grades and Their Properties
- St35: Known for its good weldability and machinability, making it suitable for general engineering purposes.
- St45: Offers higher strength compared to St35, used in applications requiring more robust mechanical properties.
- St52: The strongest among the three, St52 is ideal for high-stress applications due to its excellent tensile strength and impact resistance.
Manufacturing Processes
Cold Drawing Process
Cold drawing involves pulling a steel tube through a die to reduce its diameter and increase its length. This process enhances the tube’s mechanical properties and achieves tight dimensional tolerances.
Cold Rolling Process
Cold rolling involves passing the steel tube through a series of rollers to achieve the desired thickness and surface finish. This process improves the tube’s structural integrity and surface uniformity.
Technical Specifications
Dimensional Tolerances
DIN 2391 specifies stringent dimensional tolerances to ensure that the steel tubes meet precise measurements, which is crucial for applications requiring high accuracy.
Surface Quality
The standard mandates a high surface quality with minimal imperfections, ensuring the tubes are suitable for demanding industrial applications.
Mechanical Properties
DIN 2391 steel tubes must meet specific mechanical properties, including tensile strength, yield strength, and elongation, to ensure reliable performance under various conditions.
Inspection and Testing Procedures
Visual Inspection
Each steel tube undergoes a thorough visual inspection to check for surface defects and dimensional accuracy.
Mechanical Testing (Tensile, Hardness)
Mechanical tests, such as tensile and hardness tests, are conducted to verify the tubes’ strength and durability.
Non-destructive Testing (Eddy Current, Ultrasonic)
Non-destructive testing methods like eddy current and ultrasonic testing are used to detect internal defects without damaging the tubes.
Applications of DIN 2391 Steel Tubes
Automotive Industry
In the automotive sector, DIN 2391 steel tubes are used for manufacturing critical components like fuel injection systems and shock absorbers.
Machinery Manufacturing
These precision tubes are integral in machinery manufacturing, where high dimensional accuracy and strength are paramount.
Hydraulic and Pneumatic Systems
DIN 2391 tubes are commonly used in hydraulic and pneumatic systems due to their ability to withstand high pressure and provide leak-proof performance.
Advantages of Using DIN 2391 Standard Tubes
High Precision
The manufacturing processes ensure that DIN 2391 tubes have tight dimensional tolerances, making them ideal for precision applications.
Enhanced Durability
With superior mechanical properties, these tubes offer excellent durability, reducing the need for frequent replacements.
Cost-Effectiveness
Despite their high quality, DIN 2391 tubes are cost-effective, offering long-term savings due to their durability and reliability.
Comparison with Other Standards
DIN 2391 vs ASTM A519
While both standards cover seamless steel tubes, DIN 2391 focuses more on precision and surface quality, whereas ASTM A519 includes a broader range of mechanical tubing applications.
DIN 2391 vs EN 10305
Both standards are used for precision tubes, but DIN 2391 is often preferred for its stricter dimensional tolerances and higher surface quality.
Common Challenges and Solutions
Handling and Storage
Proper handling and storage are crucial to prevent damage to the tubes. Using appropriate supports and avoiding contact with corrosive materials can help maintain their quality.
Fabrication Challenges
Working with high-precision tubes requires specialized equipment and skilled labor. Investing in proper training and tools can mitigate these challenges.
Future Trends in Precision Steel Tubes
Technological Advancements
Advancements in manufacturing technology are continually improving the precision and quality of steel tubes, making them more efficient and cost-effective.
Market Demand
The demand for high-precision steel tubes is expected to grow, driven by advancements in automotive and industrial applications.
Environmental Considerations
Sustainable Manufacturing Practices
Manufacturers are adopting sustainable practices to reduce the environmental impact of steel tube production, including energy-efficient processes and waste reduction techniques.
Recycling of Steel Tubes
Steel tubes are highly recyclable, contributing to a circular economy and reducing the demand for raw materials.
DIN 2391 seamless precision steel tubes are a cornerstone in many industrial applications due to their high precision, durability, and cost-effectiveness. Whether in the automotive, machinery, or hydraulic sectors, these tubes deliver reliable performance. As technology and market demands evolve, DIN 2391 tubes will continue to play a critical role in meeting the needs of modern industries.
